The performance loop
A practical guide to profiling and benchmarking
[SimpleJob]
[MemoryDiagnoser]
public class StringJoinBenchmarks {
[Benchmark]
public string StringJoin() {
return string.Join(", ", Enumerable.Range(0, 10).Select(i => i.ToString()));
}
[Benchmark]
public string StringBuilder() {
var sb = new StringBuilder();
for (int i = 0; i < 10; i++)
{
sb.Append(i);
sb.Append(", ");
}
return sb.ToString(0, sb.Length - 2);
}
[Benchmark]
public string ValueStringBuilder() {
var seperator = new ReadOnlySpan<char>(new char[] { ',', ' '});
using var sb = new ValueStringBuilder(stackalloc char[30]);
for (int i = 0; i < 10; i++)
{
sb.Append(i);
sb.Append(seperator);
}
return sb.AsSpan(0, sb.Length - 2).ToString();
}
}"simple"
"We were able to see Azure Compute cost reduction of up to 50% per month, on average we observed 24% monthly cost reduction after migrating to .NET 6. The reduction in cores reduced Azure spend by 24%."
Perf rmance Aware
Bear Aware
Be curious....
Understand The Context
- How is this code going to be executed at scale, and what would the memory characteristics be (gut feeling)
- Are there simple low-hanging fruits I can apply to accelerate this code?
- Are there things I can move away from the hot path by simply restructuring a bit my code?
- What part is under my control and what isn't really?
- What optimizations can I apply, and when should I stop?
The performance loop
Profile using a harness
Improve a hot path
Benchmark and compare
Profile improvements again
Ship to production
The performance loop
- Profile at least CPU and memory using a profiling harness
- Improve parts of the hot path
The performance loop
-
Profile at least CPU and memory using a profiling harness
- Improve parts of the hot path
- Benchmark and compare
- Profile improvements again with the harness and make adjustments where necessary
- Ship and focus your attention to other parts
NServiceBus
NServiceBus
Pipeline
public class RequestCultureMiddleware {
private readonly RequestDelegate _next;
public RequestCultureMiddleware(RequestDelegate next) {
_next = next;
}
public async Task InvokeAsync(HttpContext context) {
// Do work that does something before
await _next(context);
// Do work that does something after
}
}ASP.NET Core Middleware
public class Behavior : Behavior<IIncomingLogicalMessageContext> {
public override Task
Invoke(IIncomingLogicalMessageContext context, Func<Task> next) {
// Do work that does something before
await next();
// Do work that does something after
}
}Behaviors
The performance loop
Profile using a harness
Improve a hot path
Benchmark and compare
Profile improvements again
Ship to production
Profiling the pipeline
Profiling the pipeline
> Improving > Benchmarking > Profiling
The harness
var endpointConfiguration = new EndpointConfiguration("Harness");
endpointConfiguration.UseSerialization<JsonSerializer>();
var transport = endpointConfiguration.UseTransport<MsmqTransport>();
endpointConfiguration.UsePersistence<InMemoryPersistence>();
var endpointInstance = await Endpoint.Start(endpointConfiguration);
Console.WriteLine("Attach the profiler and hit <enter>.");
Console.ReadLine();
var tasks = new List<Task>(1000);
for (int i = 0; i < 1000; i++)
{
tasks.Add(endpointInstance.Publish(new MyEvent()));
}
await Task.WhenAll(tasks);
Console.WriteLine("Publish 1000 done. Get a snapshot");
Console.ReadLine();Profiling the pipeline
Publish Pipeline
> Improving > Benchmarking > Profiling
The harness
public class MyEventHandler : IHandleMessages<MyEvent> {
public Task Handle(MyEvent message, IMessageHandlerContext context)
{
return Task.CompletedTask;
}
}Profiling the pipeline
Receive Pipeline
> Improving > Benchmarking > Profiling
The harness
- Compiled and executed in Release mode
- Runs a few seconds and keeps overhead minimal
- Disabled Tiered JIT
<TieredCompilation>false</TieredCompilation> - Emits full symbols
<DebugType>pdbonly</DebugType>
<DebugSymbols>true</DebugSymbols>
var endpointConfiguration = new EndpointConfiguration("Harness");
endpointConfiguration.UseSerialization<JsonSerializer>();
var transport = endpointConfiguration.UseTransport<MsmqTransport>();
endpointConfiguration.UsePersistence<InMemoryPersistence>();
var endpointInstance = await Endpoint.Start(endpointConfiguration);
Console.WriteLine("Attach the profiler and hit <enter>.");
Console.ReadLine();
var tasks = new List<Task>(1000);
for (int i = 0; i < 1000; i++)
{
tasks.Add(endpointInstance.Publish(new MyEvent()));
}
await Task.WhenAll(tasks);
Console.WriteLine("Publish 1000 done. Get a snapshot");
Console.ReadLine();public class MyEventHandler : IHandleMessages<MyEvent> {
public Task Handle(MyEvent message, IMessageHandlerContext context)
{
return Task.CompletedTask;
}
}Profiling the pipeline
> Improving > Benchmarking > Profiling

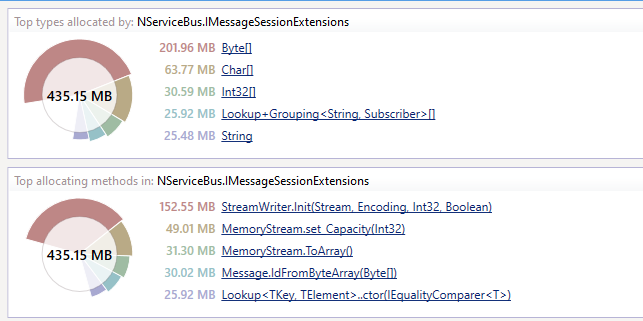

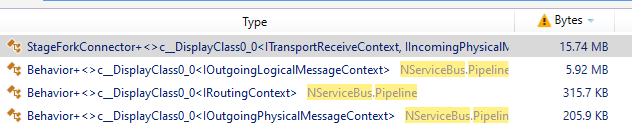

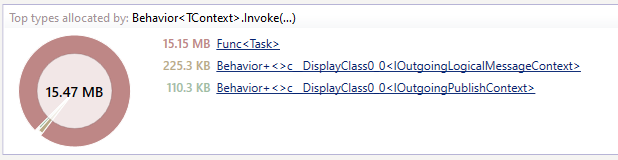

Publish

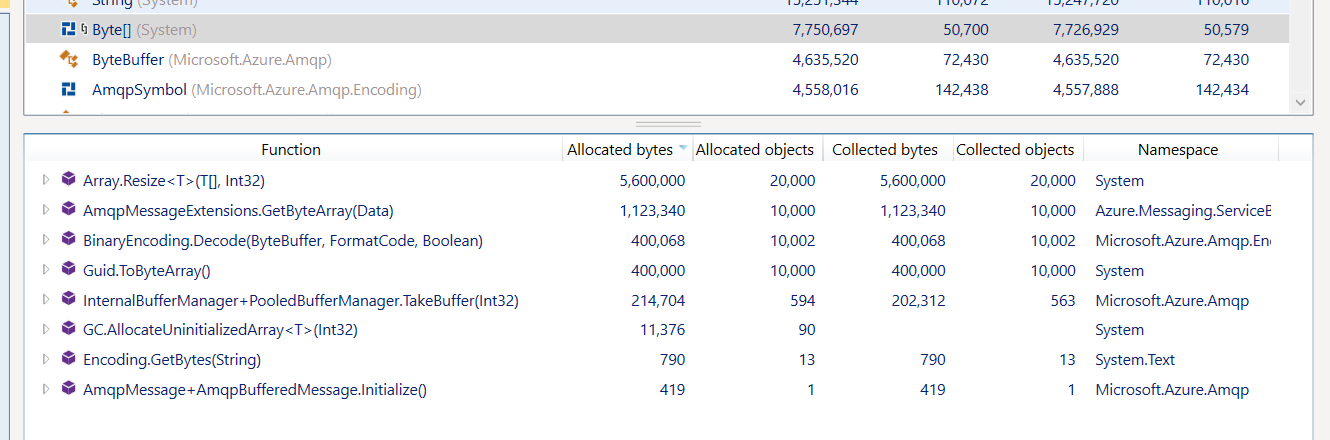

Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling

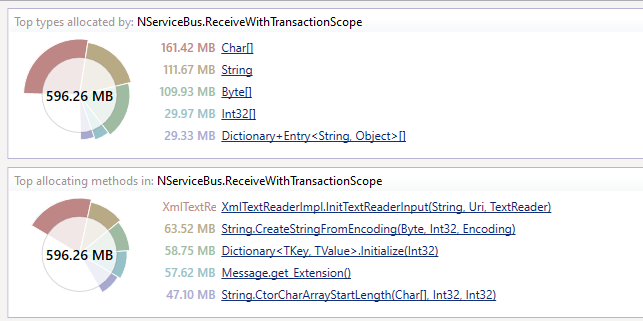

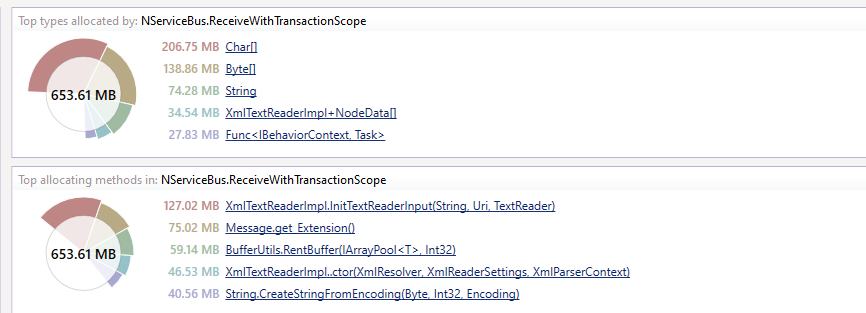

Receive
Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling

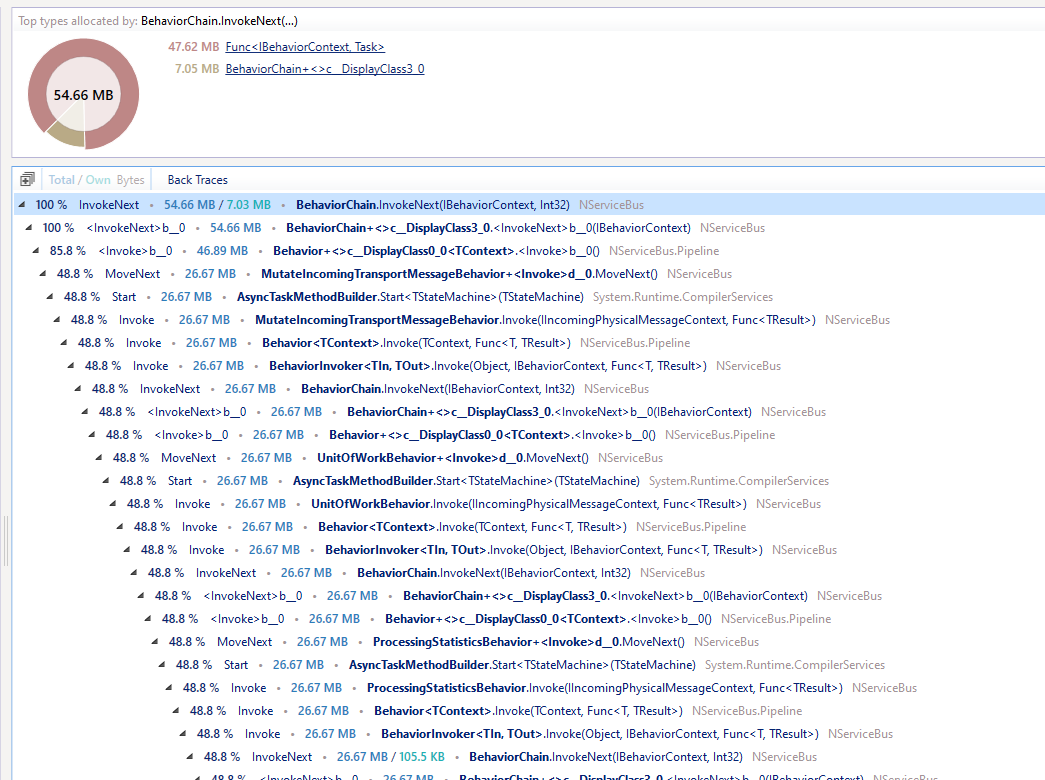

BehaviorChain
Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling
Context matters
You are the expert
Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling
- MSMQ has a diminishing user-base
- Ramping up knowledge may not be feasible
- Iterative gains on the hot path will lead to overall improvements
- Pipeline optimizations benefits all users
Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling
Memory Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling

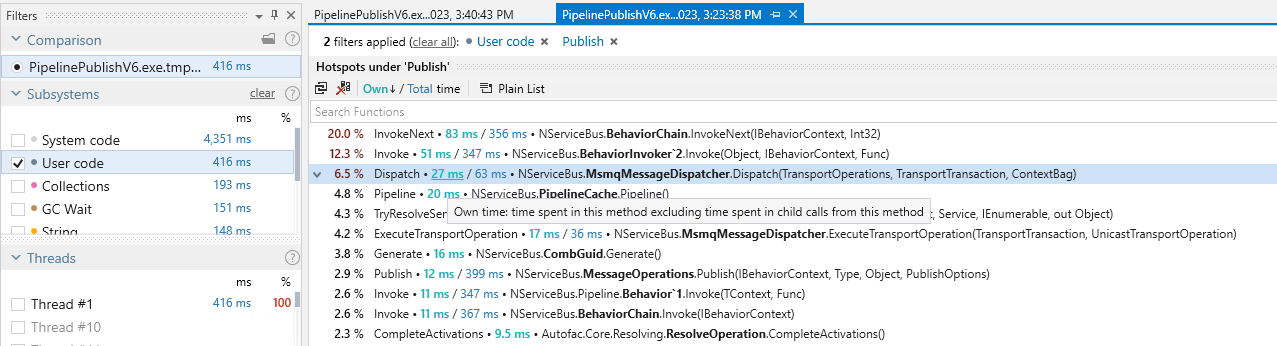

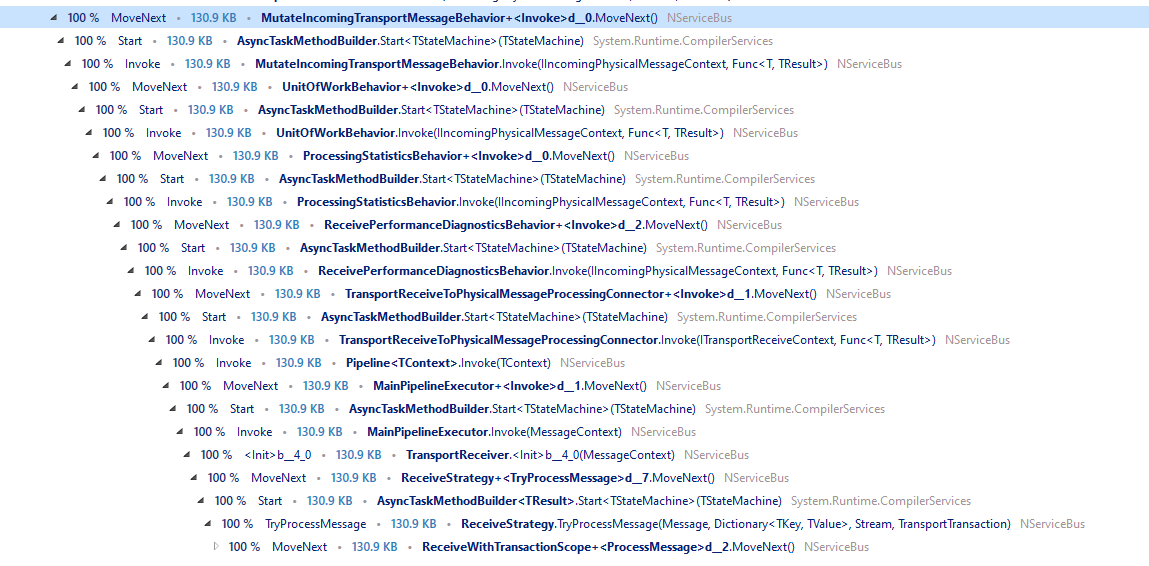

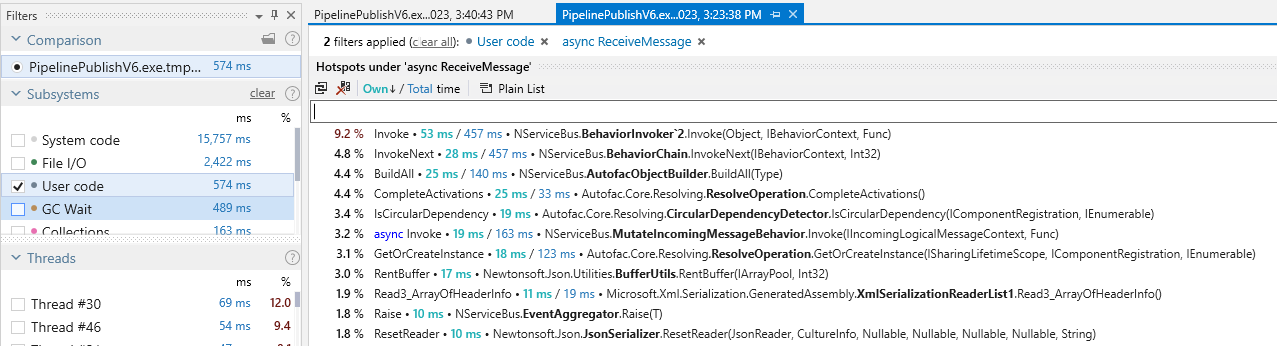

CPU Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling
CPU Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling

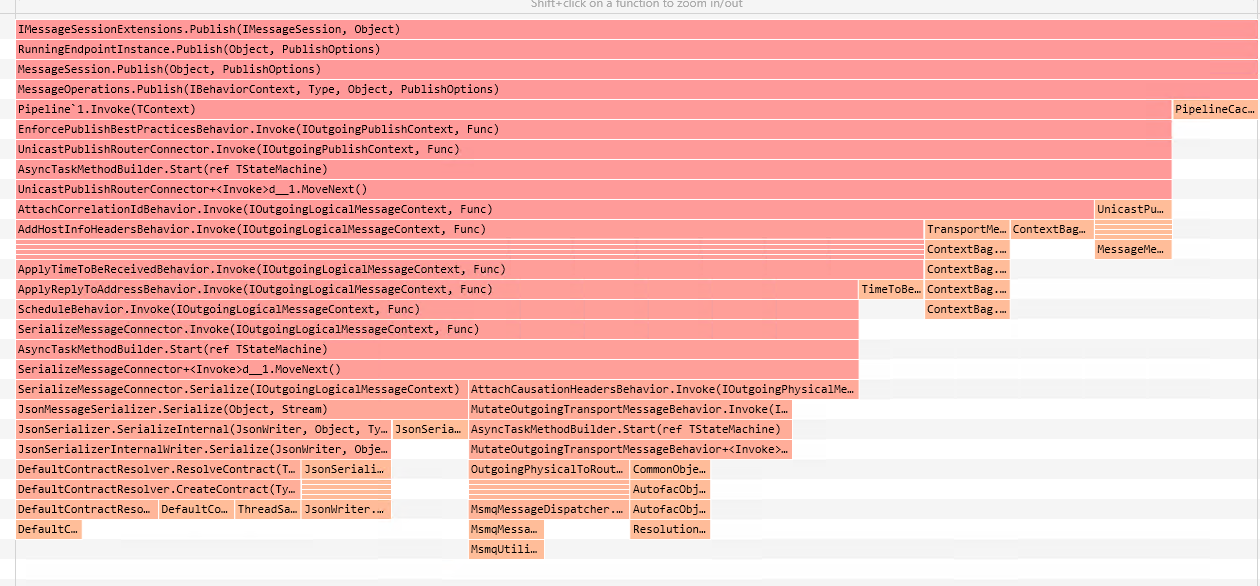

CPU Characteristics

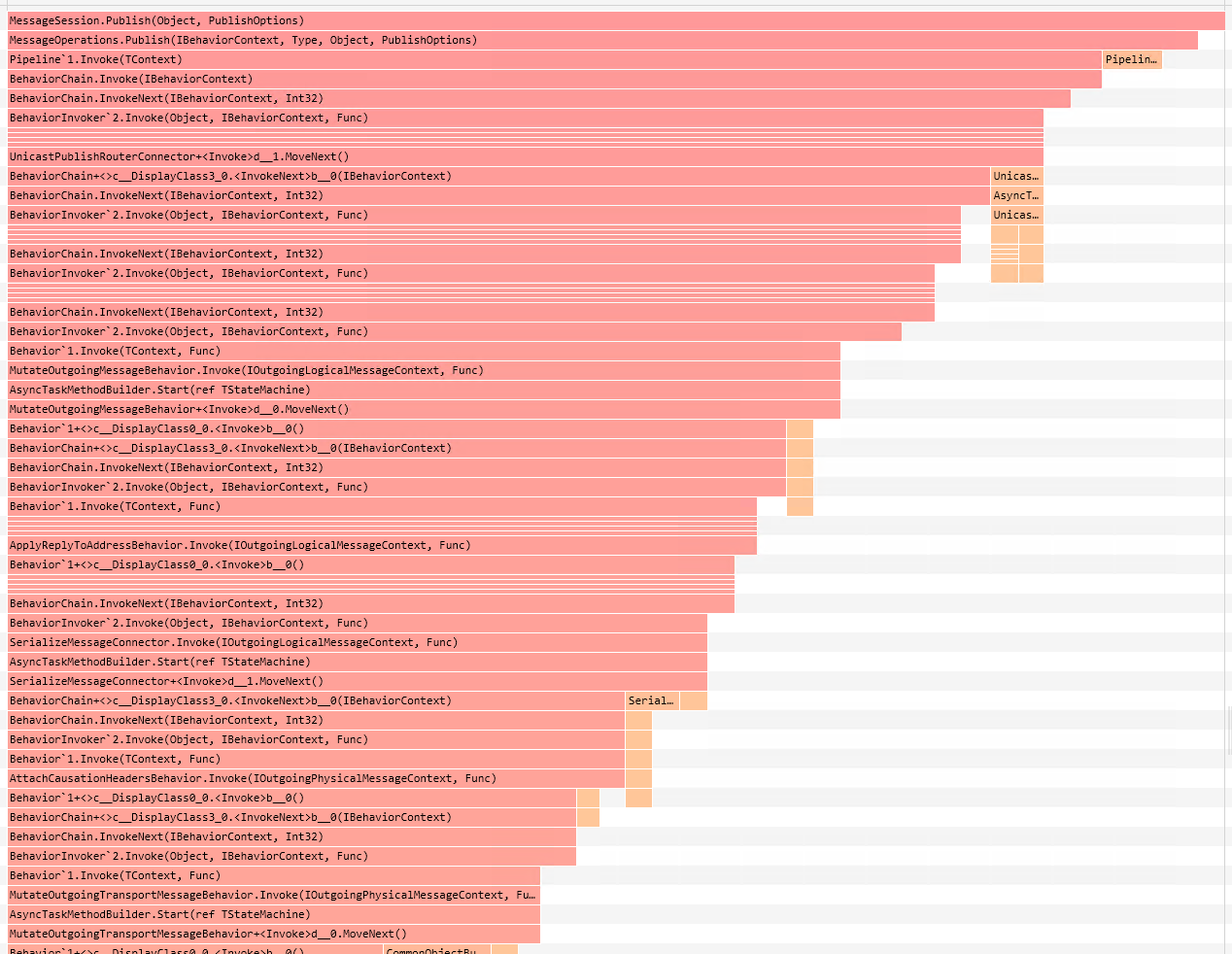

Publish
Profiling the pipeline
> Improving > Benchmarking > Profiling

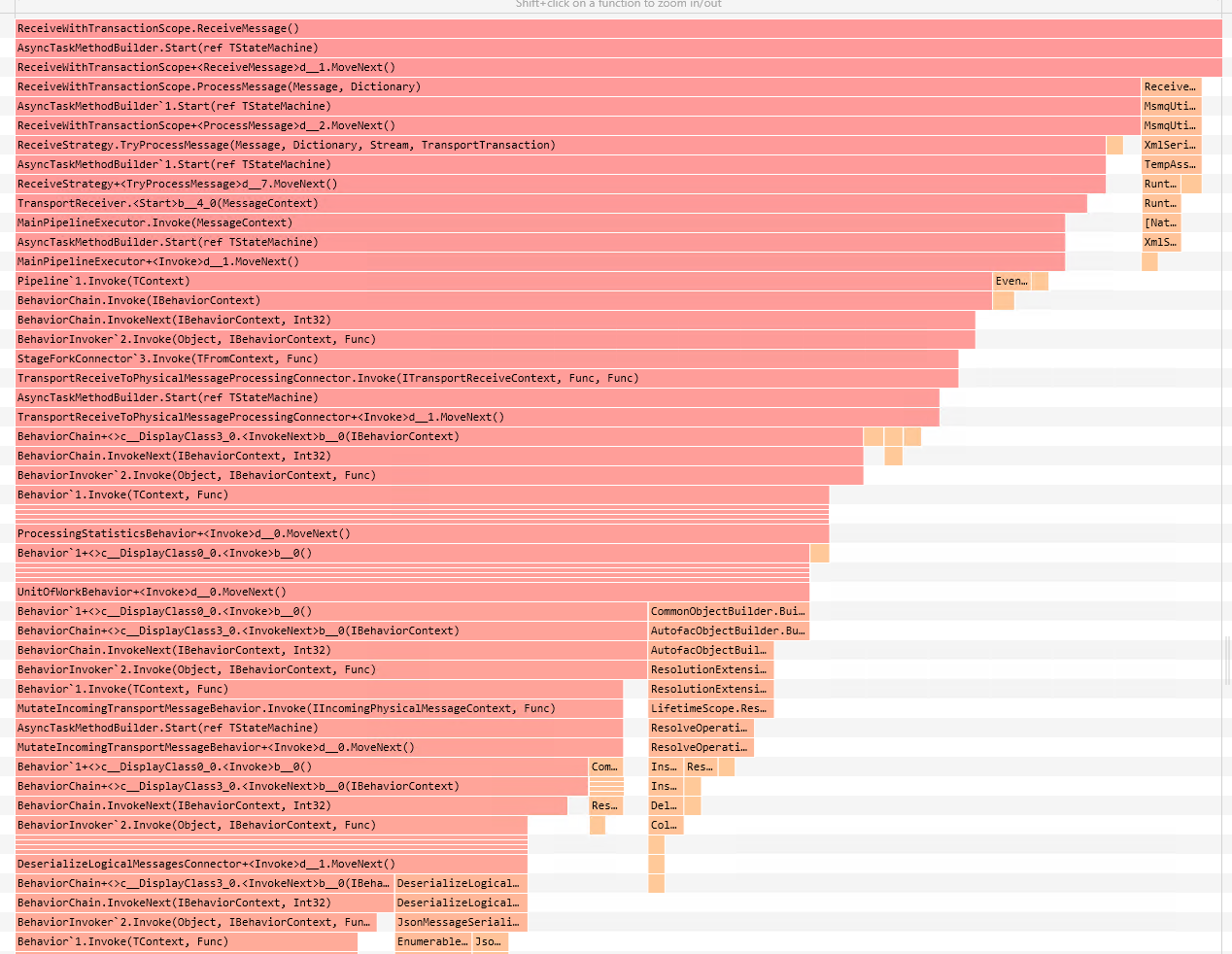

CPU Characteristics

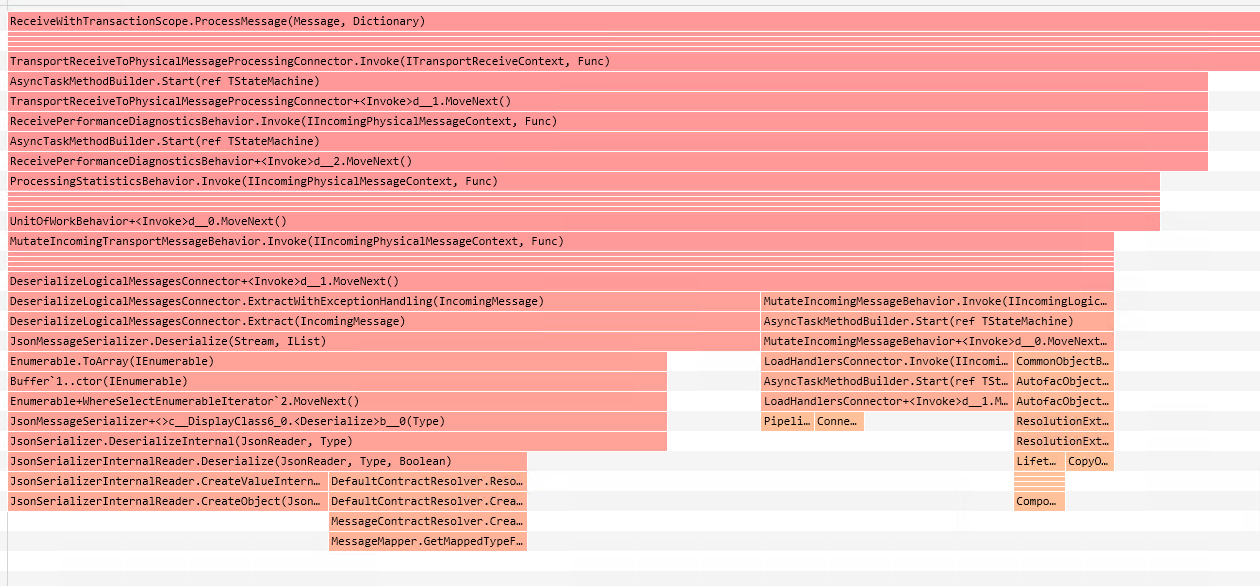

Receive
Profiling the pipeline
> Improving > Benchmarking > Profiling
CPU Characteristics
Profiling the pipeline
> Improving > Benchmarking > Profiling
The performance loop
Profile using a harness
Improve a hot path
Benchmark and compare
Profile improvements again
Ship to production
Improving
Improving
> Benchmarking > Profiling
Profiling >
Improving
Improving
> Benchmarking > Profiling
Profiling >
The performance loop
Profile using a harness
Improve a hot path
Benchmark and compare
Profile improvements again
Ship to production
Benchmarking the pipeline
> Profiling
Benchmarking the pipeline
Profiling > Improving >
Benchmarking the pipeline
- Copy and paste relevant code
- Adjust it to the bare essentials to create a controllable environment

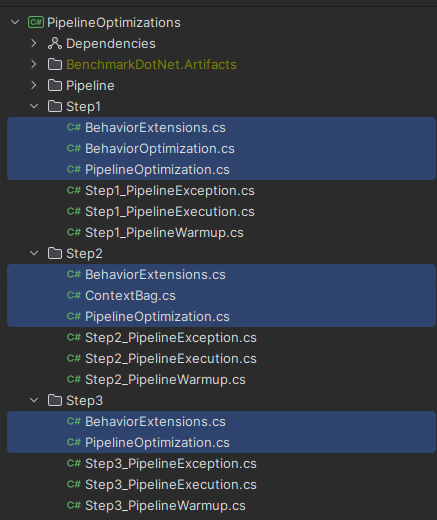

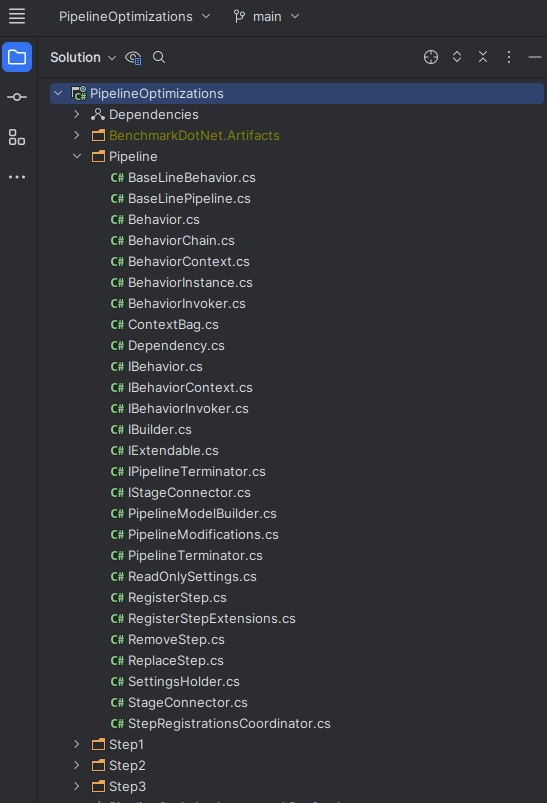

Extract Code
> Profiling
Profiling > Improving >
- Trim down to relevant behaviors
- Replaced dependency injection container with creating relevant classes
- Replaced IO-operations with completed tasks
Extract Code
Benchmarking the pipeline
> Profiling
Profiling > Improving >
- Get started with small steps
- Culture change takes time
- Make changes gradually
Performance Culture
Benchmarking the pipeline
> Profiling
Profiling > Improving >
// Special nobs and dials
[Job]
[XyZDiagnoser]
public class Benchmark {
// Permutations that influence your scenario
[Params(...)]
public int Parameter1 { get; set; }
[Params(...)]
public int Parameter2 { get; set; }
[GlobalSetup]
public void SetUp() {
// Stuff that you don't want to measure
}
[Benchmark(Baseline = true)]
public void Before() {
// Your code before the changes
}
[Benchmark]
public void After() {
// Your code after the changes
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
- Measures a distribution of values
| Method | Mean | Error | StdDev | Ratio | Param |
|------- |---------:|---------:|---------:|---------:|---------:|
| Before | 51.57 us | 0.311 us | 0.291 us | 1.00 | Value |
| After | 21.91 us | 0.138 us | 0.129 us | 0.42 | Value |
- Executed until results are stable potentially hundreds or thousands of times
- Takes minutes or hours
- Focuses on most common cases of frequently used code (hot path) with the required amount of permutations
- Cases should be derived from production usage
Unlike a unit test
[ShortRunJob]
[MemoryDiagnoser]
public class PipelineExecution {
[Params(10, 20, 40)]
public int PipelineDepth { get; set; }
[GlobalSetup]
public void SetUp() {
behaviorContext = new BehaviorContext();
pipelineModificationsBeforeOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsBeforeOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BaseLineBehavior), i.ToString(), b => new BaseLineBehavior()));
}
pipelineModificationsAfterOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsAfterOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BehaviorOptimization), i.ToString(), b => new BehaviorOptimization()));
}
pipelineBeforeOptimizations = new BaseLinePipeline<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
}
[Benchmark(Baseline = true)]
public async Task Before() {
await pipelineBeforeOptimizations.Invoke(behaviorContext);
}
[Benchmark]
public async Task After() {
await pipelineAfterOptimizations.Invoke(behaviorContext);
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class PipelineExecution {
[Params(10, 20, 40)]
public int PipelineDepth { get; set; }
[GlobalSetup]
public void SetUp() {
behaviorContext = new BehaviorContext();
pipelineModificationsBeforeOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsBeforeOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BaseLineBehavior), i.ToString(), b => new BaseLineBehavior()));
}
pipelineModificationsAfterOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsAfterOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BehaviorOptimization), i.ToString(), b => new BehaviorOptimization()));
}
pipelineBeforeOptimizations = new BaseLinePipeline<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
}
[Benchmark(Baseline = true)]
public async Task Before() {
await pipelineBeforeOptimizations.Invoke(behaviorContext);
}
[Benchmark]
public async Task After() {
await pipelineAfterOptimizations.Invoke(behaviorContext);
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class PipelineExecution {
[Params(10, 20, 40)]
public int PipelineDepth { get; set; }
[GlobalSetup]
public void SetUp() {
behaviorContext = new BehaviorContext();
pipelineModificationsBeforeOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsBeforeOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BaseLineBehavior), i.ToString(), b => new BaseLineBehavior()));
}
pipelineModificationsAfterOptimizations = new PipelineModifications();
for (int i = 0; i < PipelineDepth; i++)
{
pipelineModificationsAfterOptimizations.Additions.Add(RegisterStep.Create(i.ToString(),
typeof(BehaviorOptimization), i.ToString(), b => new BehaviorOptimization()));
}
pipelineBeforeOptimizations = new BaseLinePipeline<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
}
[Benchmark(Baseline = true)]
public async Task Before() {
await pipelineBeforeOptimizations.Invoke(behaviorContext);
}
[Benchmark]
public async Task After() {
await pipelineAfterOptimizations.Invoke(behaviorContext);
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
| Method | Calls | Depth | Mean | Error | StdDev | Ratio | RatioSD | Gen 0 | Allocated |
|----------|--------|-------|------------|------------|------------|-------|---------|-------------|----------------|
| Before | 20000 | 10 | 7.083 ms | 3.1550 ms | 0.1729 ms | 1.00 | 0.00 | 3054.6875 | 19,200,023 B |
| After | 20000 | 10 | 1.588 ms | 1.1607 ms | 0.0636 ms | 0.22 | 0.01 | - | 1 B |
| Before | 20000 | 20 | 10.989 ms | 9.0910 ms | 0.4983 ms | 1.00 | 0.00 | 6109.3750 | 38,400,049 B |
| After | 20000 | 20 | 2.830 ms | 2.4414 ms | 0.1338 ms | 0.26 | 0.00 | - | 2 B |
| Before | 20000 | 40 | 23.054 ms | 11.1449 ms | 0.6109 ms | 1.00 | 0.00 | 12218.7500 | 76,800,012 B |
| After | 20000 | 40 | 5.192 ms | 4.4372 ms | 0.2432 ms | 0.23 | 0.02 | - | 3 B |
Benchmarking the pipeline
> Profiling
Profiling > Improving >
- Single Responsibility Principle
- No side effects
- Prevents dead code elimination
- Delegates heavy lifting to the framework
-
Is explicit
- No implicit casting
- Explicit types were necessary
- Avoid running any other resource-heavy processes while benchmarking
practices
Benchmarking the pipeline
> Profiling
Profiling > Improving >
Benchmarking is really hard
BenchmarkDotNet will protect you from the common pitfalls because it does all the dirty work for you
Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class Step1_PipelineWarmup {
// rest almost the same
[Benchmark(Baseline = true)]
public BaseLinePipeline<IBehaviorContext> Before() {
var pipelineBeforeOptimizations = new BaseLinePipeline<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
return pipelineBeforeOptimizations;
}
[Benchmark]
public PipelineOptimization<IBehaviorContext> After() {
var pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
return pipelineAfterOptimizations;
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class Step2_PipelineException {
[GlobalSetup]
public void SetUp() {
...
var stepdId = PipelineDepth + 1;
pipelineModificationsBeforeOptimizations.Additions.Add(RegisterStep.Create(stepdId.ToString(), typeof(Throwing), "1", b => new Throwing()));
...
pipelineModificationsAfterOptimizations.Additions.Add(RegisterStep.Create(stepdId.ToString(), typeof(Throwing), "1", b => new Throwing()));
pipelineBeforeOptimizations = new Step1.PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
}
[Benchmark(Baseline = true)]
public async Task Before() {
try
{
await pipelineBeforeOptimizations.Invoke(behaviorContext).ConfigureAwait(false);
}
catch (InvalidOperationException)
{
}
}
[Benchmark]
public async Task After() {
try
{
await pipelineAfterOptimizations.Invoke(behaviorContext).ConfigureAwait(false);
}
catch (InvalidOperationException)
{
}
}
class Throwing : Behavior<IBehaviorContext> {
public override Task Invoke(IBehaviorContext context, Func<Task> next)
{
throw new InvalidOperationException();
}
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class Step2_PipelineException {
[GlobalSetup]
public void SetUp() {
...
var stepdId = PipelineDepth + 1;
pipelineModificationsBeforeOptimizations.Additions.Add(RegisterStep.Create(stepdId.ToString(), typeof(Throwing), "1", b => new Throwing()));
...
pipelineModificationsAfterOptimizations.Additions.Add(RegisterStep.Create(stepdId.ToString(), typeof(Throwing), "1", b => new Throwing()));
pipelineBeforeOptimizations = new Step1.PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsBeforeOptimizations);
pipelineAfterOptimizations = new PipelineOptimization<IBehaviorContext>(null, new SettingsHolder(),
pipelineModificationsAfterOptimizations);
}
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
[ShortRunJob]
[MemoryDiagnoser]
public class Step2_PipelineException {
[GlobalSetup]
public void SetUp() {
...
}
[Benchmark(Baseline = true)]
public async Task Before() {
try
{
await pipelineBeforeOptimizations.Invoke(behaviorContext);
}
catch (InvalidOperationException)
{
}
}
[Benchmark]
public async Task After() {
try
{
await pipelineAfterOptimizations.Invoke(behaviorContext);
}
catch (InvalidOperationException)
{
}
}
...
}Benchmarking the pipeline
> Profiling
Profiling > Improving >
Benchmarking the pipeline
> Profiling
Profiling > Improving >
The performance loop
Profile using a harness
Improve a hot path
Benchmark and compare
Profile improvements again
Ship to production
Profiling the pipeline (Again)
Profiling the pipeline (again)
Profiling > Improving > Benchmarking >
Profiling the pipeline (again)
Publish
Memory Characteristics
Before
After
Profiling > Improving > Benchmarking >
Receive
Memory Characteristics
Profiling the pipeline (again)
After
Before
Profiling > Improving > Benchmarking >
Memory Characteristics
Profiling the pipeline (again)
Receive
After
Before
Profiling > Improving > Benchmarking >
Memory Characteristics
Profiling the pipeline (again)
After
Before
Profiling > Improving > Benchmarking >
oh look, there is nothing 😌
CPU Characteristics
Publish
Profiling the pipeline (again)
Profiling > Improving > Benchmarking >
CPU Characteristics
Publish
Profiling the pipeline (again)
Profiling > Improving > Benchmarking >
After
Before
CPU Characteristics
Receive
Profiling the pipeline (again)
Profiling > Improving > Benchmarking >
CPU Characteristics
Receive
Profiling the pipeline (again)
Profiling > Improving > Benchmarking >
After
Before
Getting lower on the stack
Getting lower on the stack
Getting lower on the stack
The harness
await using var serviceBusClient = new ServiceBusClient(connectionString);
await using var sender = serviceBusClient.CreateSender(destination);
var messages = new List<ServiceBusMessage>(1000);
for (int i = 0; i < 1000; i++) {
messages.Add(new ServiceBusMessage(UTF8.GetBytes($"Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i}")));
if (i % 100 == 0) {
await sender.SendMessagesAsync(messages);
messages.Clear();
}
}
await sender.SendMessagesAsync(messages);
WriteLine("Messages sent");
Console.WriteLine("Take snapshot");
Console.ReadLine();
var countDownEvent = new CountdownEvent(1000);
var processorOptions = new ServiceBusProcessorOptions {
AutoCompleteMessages = true,
MaxConcurrentCalls = 100,
MaxAutoLockRenewalDuration = TimeSpan.FromMinutes(10),
ReceiveMode = ServiceBusReceiveMode.PeekLock,
};
await using var receiver = serviceBusClient.CreateProcessor(destination, processorOptions);
receiver.ProcessMessageAsync += async messageEventArgs => {
var message = messageEventArgs.Message;
await Out.WriteLineAsync(
$"Received message with '{message.MessageId}' and content '{UTF8.GetString(message.Body)}' / binary {message.Body}");
countDownEvent.Signal();
};
// rest omitted
await receiver.StartProcessingAsync();
countDownEvent.Wait();
Console.WriteLine("Take snapshot");
Console.ReadLine();
await receiver.StopProcessingAsync();Getting lower on the stack
The harness
await using var serviceBusClient = new ServiceBusClient(connectionString);
await using var sender = serviceBusClient.CreateSender(destination);
var messages = new List<ServiceBusMessage>(1000);
for (int i = 0; i < 1000; i++) {
messages.Add(new ServiceBusMessage(UTF8.GetBytes($"Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i} Deep Dive {i}")));
if (i % 100 == 0) {
await sender.SendMessagesAsync(messages);
messages.Clear();
}
}
await sender.SendMessagesAsync(messages);
WriteLine("Messages sent");
Console.WriteLine("Take snapshot");
Console.ReadLine();Getting lower on the stack
The harness
var countDownEvent = new CountdownEvent(1000);
var processorOptions = new ServiceBusProcessorOptions
{
AutoCompleteMessages = true,
MaxConcurrentCalls = 100,
MaxAutoLockRenewalDuration = TimeSpan.FromMinutes(10),
ReceiveMode = ServiceBusReceiveMode.PeekLock,
};
await using var receiver = serviceBusClient.CreateProcessor(destination, processorOptions);
receiver.ProcessMessageAsync += async messageEventArgs => {
var message = messageEventArgs.Message;
await Out.WriteLineAsync(
$"Received message with '{message.MessageId}' and content '{UTF8.GetString(message.Body)}' / binary {message.Body}");
countDownEvent.Signal();
};
// rest omitted
await receiver.StartProcessingAsync();
countDownEvent.Wait();
Console.WriteLine("Take snapshot");
Console.ReadLine();
await receiver.StopProcessingAsync();Getting lower on the stack

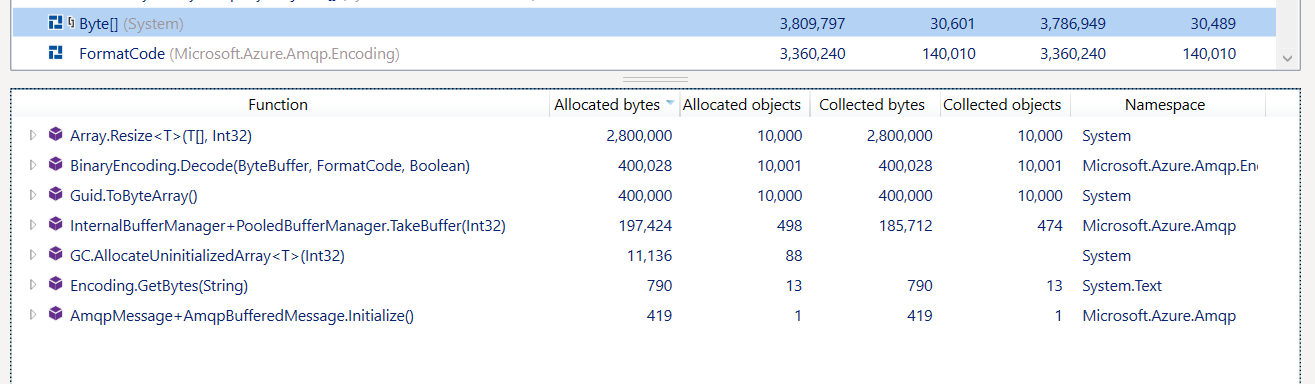

Memory Characteristics
Getting lower on the stack
Memory Characteristics
Getting lower on the stack
Preventing regressions
C:\Projects\performance\src\tools\ResultsComparer> dotnet run --base "C:\results\before"
--diff "C:\results\after" --threshold 2%- Guidance Preventing Regressions
- ResultComparer Tool
C:\Projects\performance\src\benchmarks\micro> dotnet run -c Release -f net8.0 \
--artifacts "C:\results\before"C:\Projects\performance\src\benchmarks\micro> dotnet run -c Release -f net8.0 \
--artifacts "C:\results\after""CPU-bound benchmarks are much more stable than Memory/Disk-bound benchmarks, but the average performance levels still can be up to
three times different across builds."
The performance loop
A practical guide to profiling and benchmarking
github.com/danielmarbach/BeyondSimpleBenchmarks
- Use the performance loop to improve your code where it matters
- Combine it with profiling to observe how the small changes add up
- Optimize until you hit a diminishing point of return
- You'll learn a ton about potential improvements for a new design
Profile
Improve
Benchmark
Profile
Ship
